Is it possible to add all relays available in my project to a graphic automatically?

Category:
Protection
Answer

Our "Diagram Layout Tool" can assist you on this.

How to do it:

  1. Open a diagram of interest on your graphics board

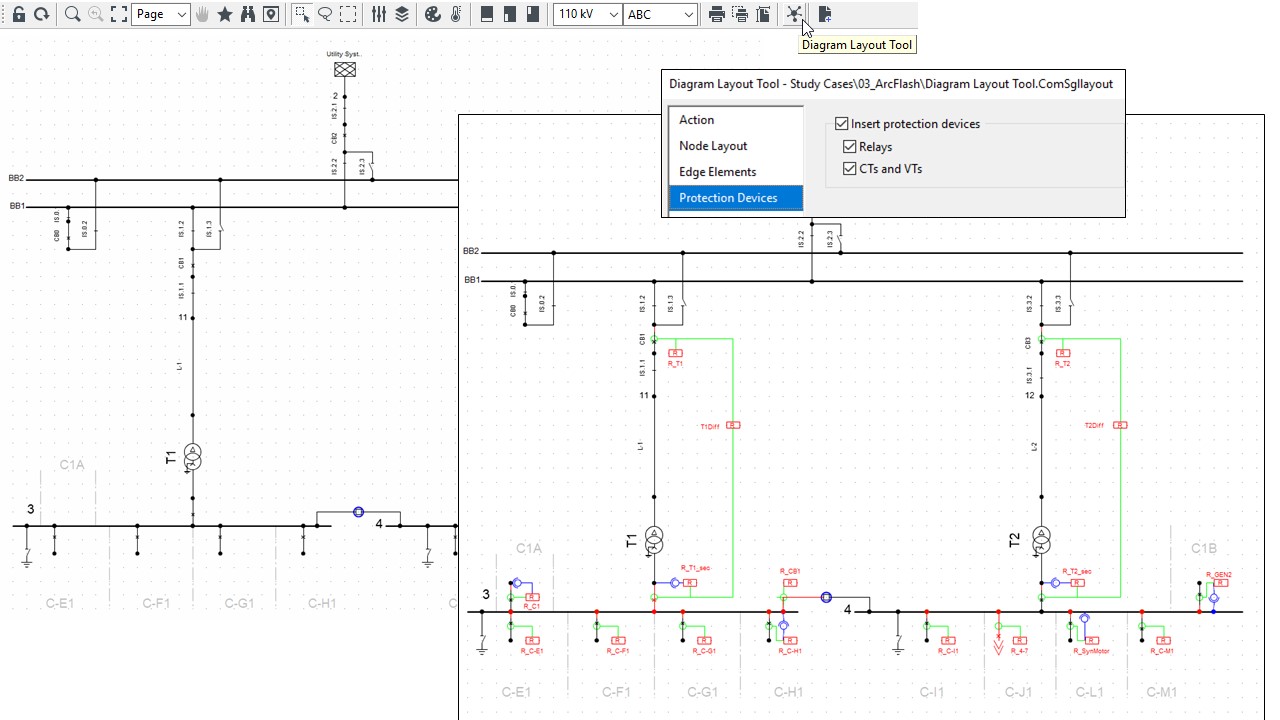

  2. Select Diagram Layout Tool icon from the local graphic window icon bar (see attached jpgfile)
  3. Select "Auto-insert elements into current diagram" as Action mode and "Protection device" as Insert elements into current diagram parameters on the "Action" page
  4. On the "Protection Devices" page you can additionally select if only relays or also CTs and Vts are going to be presented
  5.  Press the "Execute" button
  6.  Do some manual corrections if needed
